JeVois 0.3MP Low-Light Sensor with Standard, 90deg, 120deg and NoIR Lenses

  • $32.99

Real-Time Inventory Available

Quantity
Out of Stock

All in-stock items usually ship within one business day.


Will be in stock after

For JeVois-A33 only - not compatible with JeVois-Pro.

This is a replacement sensor for your JeVois-A33 camera, with a total of 4 lenses.

It uses an Omnivision ov7725 sensor chip instead of the original ov9650 sensor chip of JeVois. The ov7725 has lower resolution (max 640x480) which allows for bigger photosensitive pixels in the same package. As a result, this sensor has improved low-light sensitivity compared to the original JeVois sensor. Use this replacement sensor if you need to operate in low-light and video captured by JeVois seems too dark.

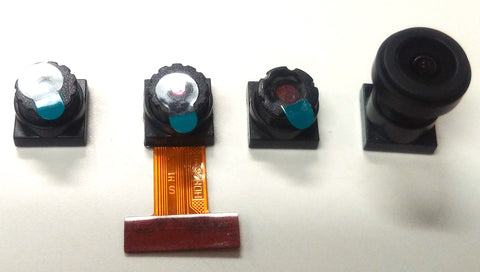

It features the same lens as originally included in your JeVois-A33 camera (field of view 60 degrees horizontal). In addition, this combo adds 3 useful lenses that can be attached to the sensor: no-distorsion 90deg, wide-angle 120deg, and NoIR for night vision.

To activate this sensor, you need to write a file called 'sensor' with contents 'ov7725' on the boot partition of your microSD card. More information at jevois.org





Note: opening the case of your JeVois camera voids your warranty. So please proceed with caution.



Also see our convenient turnkey kits with multiple lenses:

- Beginner kit with 4 different interchangeable lenses

- Beginner kit with low-light 0.3MP sensor and 4 different interchangeable lenses

- Hacker kit with 4 different sensors

- Global shutter developer kit (monochrome or color) with 4 different M12 lenses
