Mini-USB Y cable, 6 feet (1.8m) long
Real-Time Inventory Available
All in-stock items usually ship within one business day.

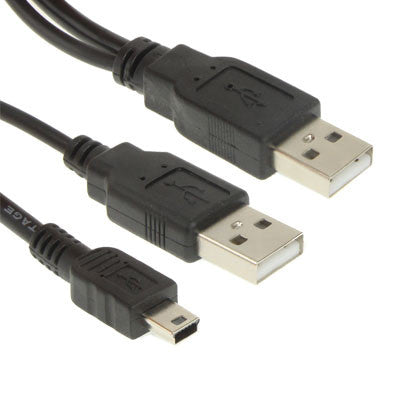

This high-quality mini-USB cable allows you to connect your JeVois smart camera to one or two USB ports on a host computer, a powered USB hub, or a USB charger or battery bank.
For optimal performance, the JeVois-A33 smart camera requires connection to at least two USB 2.0 ports, or at least one USB 3.0 ports. This is because the maximum power needed by JeVois-A33 is 3.5 Watts, while a single USB 2.0 port can deliver a maximum of 2.5 Watts, and a USB 3.0 port can deliver up to 4.5 Watts.
When using only one USB 3.0 port on a computer, you only need to connect the long end of the cable (which carries power + data) to your computer (connector P1 in the diagram image). When using with a USB 2.0 port on a computer, the long end of the cable carries power + data and should be connected to your computer (connector P1 in the diagram image), while the short end carries only extra power and can be connected to another USB port on the same computer, to a USB charger, or to a USB battery bank (connector P3 in the diagram image). The mini-USB connector (P2 in the diagram image) always connects to your JeVois smart camera.
