JeVois 2MP Sensor with Standard, 90deg, 120deg and NoIR Lenses
Real-Time Inventory Available
All in-stock items usually ship within one business day.
This is a replacement sensor for your JeVois camera, with a total of 4 lenses.
It uses an Omnivision ov2640 sensor chip instead of the original ov9650 sensor chip of JeVois. The ov2640 has higher resolution (max 1600x1200) which allows you to detect and identify smaller objects. Of course, running a machine vision algorithm at a higher resolution usually implies that it will run at a lower framerate.

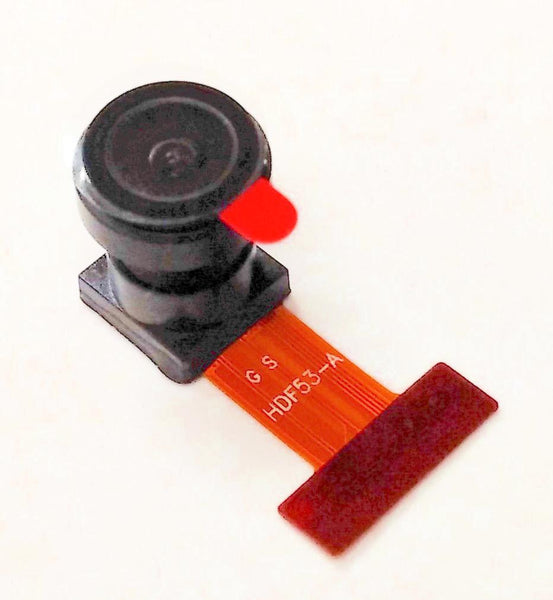

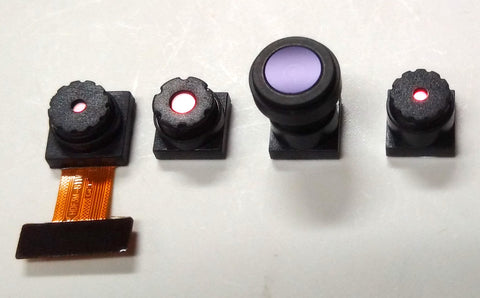

This sensor features the same lens as originally included in your JeVois camera (field of view 60 degrees horizontal). In addition, this combo adds 3 useful lenses that can be attached to the sensor: no-distorsion 90deg, wide-angle 120deg, and NoIR for night vision.
To activate this sensor, you need to write a file called 'sensor' with contents 'ov2640' on the boot partition of your microSD card. More information at jevois.org
Note: opening the case of your JeVois camera voids your warranty. So please proceed with caution.
We Also Recommend
JeVois 0.3MP Low-Light Sensor with Standard, 90deg, 120deg and NoIR Lenses

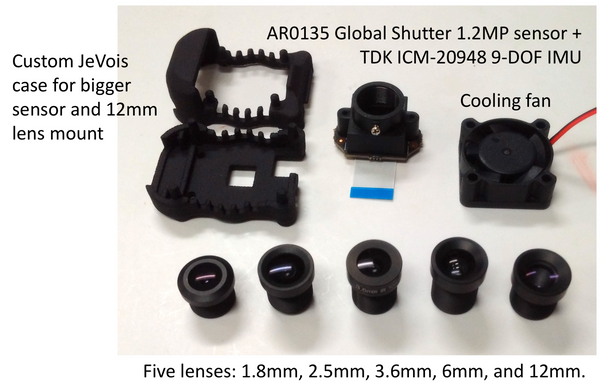

JeVois 1.2MP Global-Shutter Sensor with 9-DOF IMU Upgrade Kit - COLOR
